Nylon Interlocking Zipper

TRC nylon interlocking zipper combines high-quality nylon zipper tape with sturdy polyester teeth, making the product both durable and smooth to operate, while also allowing easy connection of any two zippers of the same model (regardless of color or batch), providing users with a flexible and convenient experience.

Send Inquiry

Product Description

TRC interlocking nylon zippers combine high-quality nylon tape with reinforced polyester teeth, ensuring exceptional durability, flexibility and smooth operation. Designed and manufactured by TRC, a specialist chinese zipper producer with over 20 years' experience, this innovation enables any two zippers of the same model to connect effortlessly, regardless of color, length or production batch.

This unique interlocking structure delivers outstanding compatibility and versatility, offering users a more convenient and efficient connection solution. Whether for apparel, luggage, outdoor gear, or modular textile applications, TRC's interlocking nylon zippers guarantee reliable performance and consistent quality.

By addressing common market issues such as zipper mismatches and batch-to-batch incompatibility, TRC's interlocking technology helps brands and manufacturers streamline production, reduce waste, and enhance product interchangeability. As a trusted zipper supplier in China, TRC offers OEM and ODM services, supporting customisation of zipper length, tape color, slider design, and special coatings to meet global client requirements.

By adopting TRC interlocking nylon zippers, you gain not only a durable, smooth zipper solution but also an intelligent, flexible fastening system that redefines zipper usage in contemporary apparel and accessories.

Specification：

Size/End-type
Model	Classification
Model	Close End	Open End	2 Way Close End	2 Way Open End	Chain
3C	√	×	×	×	√
3CPS	√	√	√	×	√
3CLT	√	√	√	√	√
3CLTI	×	√	×	√	×
4C	√	√	√	×	√
5CA	√	√	√	√	√

Advantages：

1. Wide Range of Applications.

2. Zipper Reciprocating test can reach above 1000 times.

3. All our zippers can connect seamlessly regardless of color, length, or production batch.

4. Extensively solve the problem that the same zipper needs to be marked in the production process.

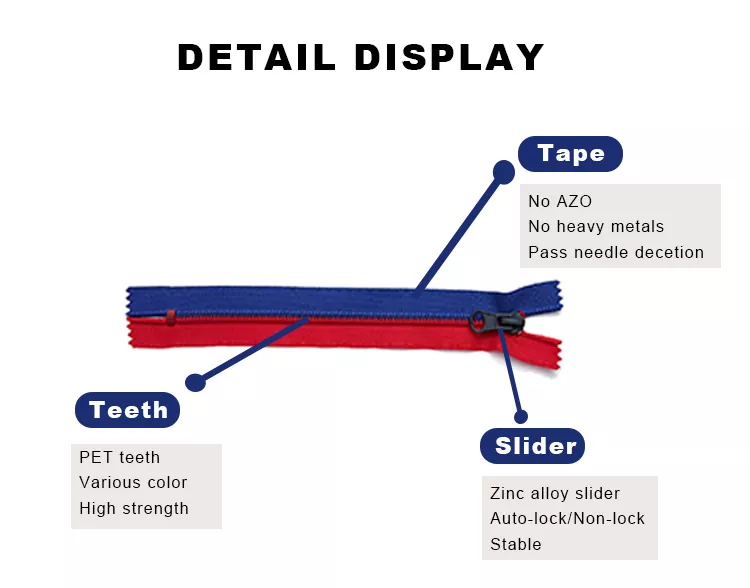

Product Details：

Advanced Production Equipment：

At TRC, every interlocking nylon zipper is produced with advanced manufacturing technology to guarantee consistent quality, precision, and reliability. Our facility is equipped with automated weaving machines, high-speed injection molding systems, and precision tooth-forming and polishing equipment, allowing for exceptional accuracy in tooth alignment and interlocking performance.

By integrating an ERP management system into its automated assembly lines, TRC guarantees the proper functioning, durability, and compatibility of every zipper. These modern production capabilities enable efficient manufacturing and rigorous quality control, ensuring that every TRC zipper meets international certification standards such as SGS and OEKO-TEX.

As a leading zipper manufacturer in China, TRC's modern production base provides fast delivery, consistent quality, and scalable production capacity, enabling us to provide reliable, high-performance fastening systems to global brands.

Property Parameters：

3C Nylon interlocking zippers/3CPS Nylon interlocking zippers Cord Plastic Stopper/3CLT Nylon interlocking zippers Lace Tape/3CLTI Standard Nylon Zipper Lace Tape Injection	QB/T2173-2014 Standard	TRC Properties	DIN3419 Standard
Chain Crosswise	≧380	≧450	≧350
Tap Pull-Off Strength	≦4	≦3.5	/
Holding Strength Of Top Stop	≧50	≧60	≧60
Holding Strength Of Bottom Stop	≧40	≧40	/
Bottom Stop Holding,Crosswise Test	/	≧35	≧40
Open-End Fastener Single Stringer Slider Retention Test	≧50	≧50	/
Holding Strength Of Separating Unit,Crosswise Test / Chain Crosswise Strength	≧70	≧70	≧80
Holding Strength Of Fixed Retainer Pull-Off Test/ Box Slippage Strength	≧70	≧70	≧60
Pin Slippate Strength	≧60	≧70	/
Resistance To Pull-Off Slider Pull	≧90	≧90	≧70
Resistance To Twist Of Puller And Slider（N.M）	≧0.2	≧0.2	/
Deflection Strength	≧43	≧43	/
Slider Lock Holding, Stringer Separation	≧20	≧20	/
Reciprocation Test(Double)	≧600	≧600	/


4C Nylon interlocking zippers	QB/T2173-2014 Standard	TRC Properties	DIN3419 Standard
Chain Crosswise	≧400	≧500	≧400
Tap Pull-Off Strength	≦5	≦5	/
Holding Strength Of Top Stop	≧70	≧70	≧70
Holding Strength Of Bottom Stop	≧50	≧50	/
Bottom Stop Holding,Crosswise Test	/	≧35	≧50
Open-End Fastener Single Stringer Slider Retention Test	≧60	≧60	/
Holding Strength Of Separating Unit,Crosswise Test / Chain Crosswise Strength	≧80	≧80	≧70
Holding Strength Of Fixed Retainer Pull-Off Test/ Box Slippage Strength	≧80	≧80	≧70
Pin Slippate Strength	≧65	≧70	/
Resistance To Pull-Off Slider Pull	≧120	≧120	≧100
Resistance To Twist Of Puller And Slider（N.M）	≧0.3	≧0.3	/
Deflection Strength	≧58	≧58	/
Slider Lock Holding, Stringer Separation	≧30	≧30	/
Reciprocation Test(Double)	≧600	≧600	/

5CA Nylon interlocking zippers Cord A	QB/T2173-2014 Standard	TRC Properties	DIN3419 Standard
Chain Crosswise	≧600	≧600	≧600
Tap Pull-Off Strength	≦5	≦4	/
Holding Strength Of Top Stop	≧90	≧90	≧80
Holding Strength Of Bottom Stop	≧80	≧80	/
Bottom Stop Holding,Crosswise Test	/	≧65	≧55
Open-End Fastener Single Stringer Slider Retention Test	≧70	≧70	/
Holding Strength Of Separating Unit,Crosswise Test / Chain Crosswise Strength	≧100	≧100	≧100
Holding Strength Of Fixed Retainer Pull-Off Test/ Box Slippage Strength	≧100	≧100	≧80
Pin Slippate Strength	≧90	≧90	/
Resistance To Pull-Off Slider Pull	≧200	≧200	120-150
Resistance To Twist Of Puller And Slider（N.M）	≧0.45	≧0.45	/
Deflection Strength	≧60	≧60	/
Slider Lock Holding, Stringer Separation	≧35	≧35	/
Reciprocation Test(Double)	≧600	≧600	/

Application：

Pants/Jeans

Lady's Dress/Skirt

Tent

Formal Dress

Down Jacket

Ornament

Health

Sport/Outdoor

Jacket

Coat

Military

Light Fabrics

Home Decoration

Pet

Handbag

Shoes/Boots

Casual

Government

Cotton

Industrial

Children's Clothing

Children's Pushchairs

Luggage

Uniform

Warm Clothing

Protective Work Wear

Medical

Massage chair
