Standard Plastic Zipper

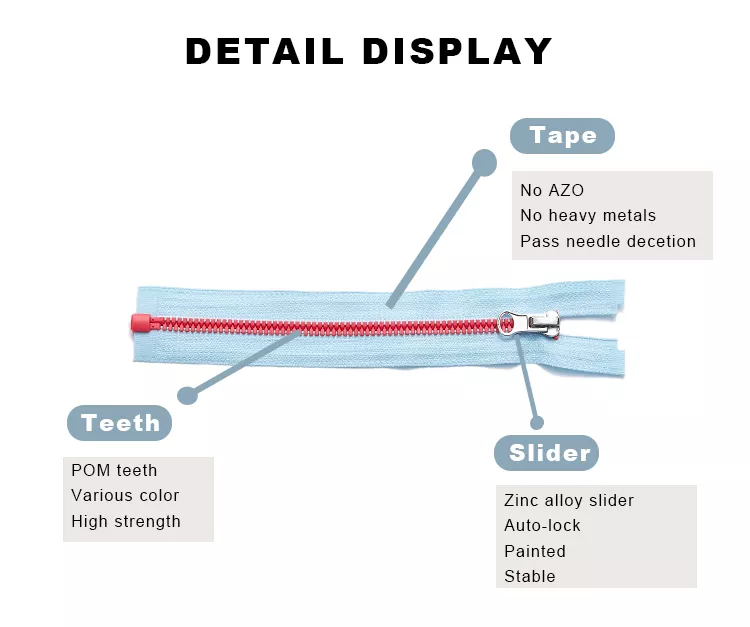

TRC standard plastic zipper is injection molded from polyoxymethylene or other high-strength resin materials, which ensures that the teeth are well-formed while providing excellent smoothness and outstanding wear resistance during use. Their surfaces support various color treatments with excellent color fastness, allowing the colors to remain vibrant for a long time. Additionally, combined with high-strength polyester tape, the overall structure is more sturdy and durable, meeting the demands of frequent daily use.

Send Inquiry

Product Description

TRC standard plastic zippers are manufactured from premium POM or other robust, durable plastics, precision injection-moulded to ensure a smooth, effortless zipper action and exceptional abrasion resistance. Each fastener features a durable polyester tape, guaranteeing reliable operation even with frequent use. Available in a range of specialized colors, these zippers exhibit outstanding colour fastness, retaining vibrant hues even after repeated washing or prolonged exposure to light and moisture.

As a professional zipper supplier, TRC focuses on precision, durability, and consistency, helping brands achieve the dual goals of performance and design flexibility in their products. Thanks to its consistent quality and exquisite craftsmanship, TRC has become a trusted zipper manufacturer in China, consistently providing reliable resin zippers for fashion apparel, outdoor gear, bags, and accessories.

Specification:

Size/End-type
Model	Classification
Model	Close End	Open End	2 Way Close End	2 Way Open End	Chain
3P	√	√	×	√	√
5P	√	√	√	√	√
8P	√	√	√	√	√

Property Parameters：

3P Stardard Normal Plastic Zipper	QB/T2172-2014 Standard	TRC Properties	DIN3419 Standard
Chain Crosswise	≧250	≧250	≧250
Tap Pull-Off Strength	≦4	≦4	/
Holding Strength Of Top Stop	≧60	≧60	≧60
Holding Strength Of Bottom Stop	≧40	≧40	/
Bottom Stop Holding,Crosswise Test	/	≧30	≧30
Open-End Fastener Single Stringer Slider Retention Test	≧50	≧50	/
Holding Strength Of Separating Unit,Crosswise Test / Chain Crosswise Strength	≧70	≧70	≧80
Holding Strength Of Fixed Retainer Pull-Off Test/ Box Slippage Strength	≧70	≧70	≧60
Pin Slippate Strength	≧60	≧60	/
Resistance To Pull-Off Slider Pull	≧150	≧150	≧70
Resistance To Twist Of Puller And Slider（N.M）	≧0.2	≧0.2	/
Deflection Strength	≧50	≧50	/
Slider Lock Holding, Stringer Separation	≧25	≧25	/
Scoop Slippage, Lengthwise	≧30	≧30	/
Individual Scoop Pull Off	/	≧30	≧25
Reciprocation Test(Double)	≧600	≧600	/

5P Stardard Normal Plastic Zipper	QB/T2172-2014 Standard	TRC Properties	DIN3419 Standard
Chain Crosswise	≧350	≧350	≧300
Tap Pull-Off Strength	≦7	≦7	/
Holding Strength Of Top Stop	≧100	≧100	≧70
Holding Strength Of Bottom Stop	≧70	≧70	/
Bottom Stop Holding,Crosswise Test	/	≧70	≧50
Open-End Fastener Single Stringer Slider Retention Test	≧70	≧70	/
Holding Strength Of Separating Unit,Crosswise Test / Chain Crosswise Strength	≧110	≧110	≧90
Holding Strength Of Fixed Retainer Pull-Off Test/ Box Slippage Strength	≧110	≧110	≧70
Pin Slippate Strength	≧100	≧100	/
Resistance To Pull-Off Slider Pull	≧230	≧230	≧100
Resistance To Twist Of Puller And Slider（N.M）	≧0.45	≧0.45	/
Deflection Strength	≧60	≧60	/
Slider Lock Holding, Stringer Separation	≧35	≧35	/
Scoop Slippage, Lengthwise	≧60	≧60	/
Individual Scoop Pull Off	/	≧50	≧35
Reciprocation Test(Double)	≧600	≧600	/

8P Stardard Normal Plastic Zipper	QB/T2172-2014 Standard	TRC Properties	DIN3419 Standard
Chain Crosswise	≧500	≧500	≧350
Tap Pull-Off Strength	≦6.5	≦6.5	/
Holding Strength Of Top Stop	≧150	≧150	≧120
Holding Strength Of Bottom Stop	≧100	≧100	/
Bottom Stop Holding,Crosswise Test	/	≧100	≧90
Open-End Fastener Single Stringer Slider Retention Test	≧90	≧90	/
Holding Strength Of Separating Unit,Crosswise Test / Chain Crosswise Strength	≧140	≧140	≧100
Holding Strength Of Fixed Retainer Pull-Off Test/ Box Slippage Strength	≧140	≧140	≧100
Pin Slippate Strength	≧140	≧140	/
Resistance To Pull-Off Slider Pull	≧280	≧280	≧230
Resistance To Twist Of Puller And Slider（N.M）	≧0.7	≧0.7	/
Deflection Strength	≧80	≧80	/
Slider Lock Holding, Stringer Separation	≧60	≧60	/
Scoop Slippage, Lengthwise	≧90	≧90	/
Individual Scoop Pull Off	/	≧60	≧40
Reciprocation Test(Double)	≧600	≧600	/

Industry Reputation：

With many years of experience in zipper manufacturing, TRC enjoys an excellent reputation in the industry for its consistent quality and reliable performance. Our zippers, renowned for their smooth operation, precise teeth, and robust construction, are trusted by many renowned brands.

As a leading zipper manufacturer in China, TRC maintains long-standing partnerships with many renowned brands. Our unwavering commitment to quality products, on-time deliveries, and superior customer service has made TRC a trusted supplier in the global market.

Application：

Pants/Jeans

Lady's Dress/Skirt

Tent

Formal Dress

Down Jacket

Ornament

Health

Sport/Outdoor

Jacket

Coat

Military

Light Fabrics

Home Decoration

Pet

Handbag

Shoes/Boots

Casual

Government

Cotton

Industrial

Children's Clothing

Luggage

Uniform

Warm Clothing

Protective Work Wear

Medical
